오픈스택 vm instance 생성(CLI)

타. 인스턴스 생성

---

1) 인스턴스 스펙 생성

. admin-openrc

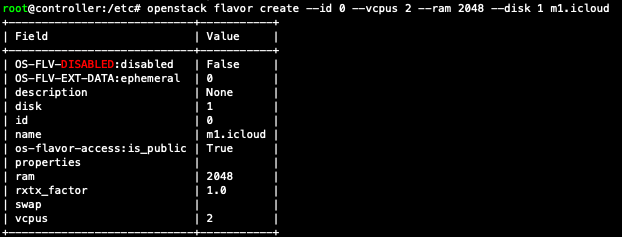

openstack flavor create --id 0 --vcpus 2 --ram 2048 --disk 1 m1.icloud



2) 키페어 생성

. demo-openrc

ssh-keygen -q -N ""

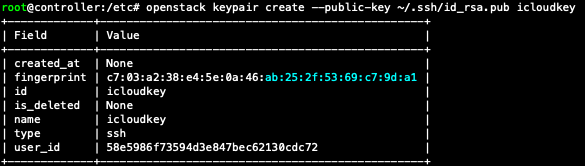

openstack keypair create --public-key ~/.ssh/id_rsa.pub icloudkey



3) Security Group 생성

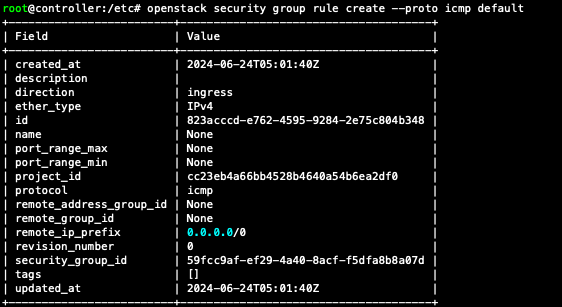

openstack security group rule create --proto icmp default

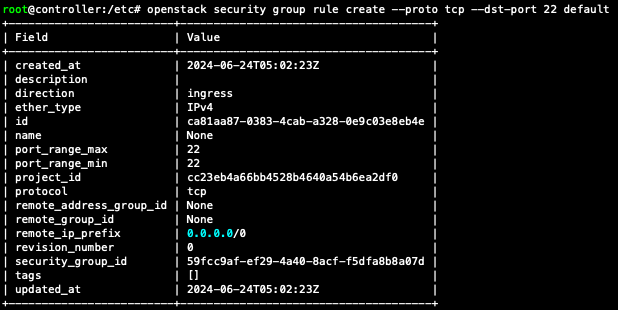

openstack security group rule create --proto tcp --dst-port 22 default



3) 인스턴스 생성

. demo-openrc

openstack flavor list



openstack image list



openstack network list



openstack security group list

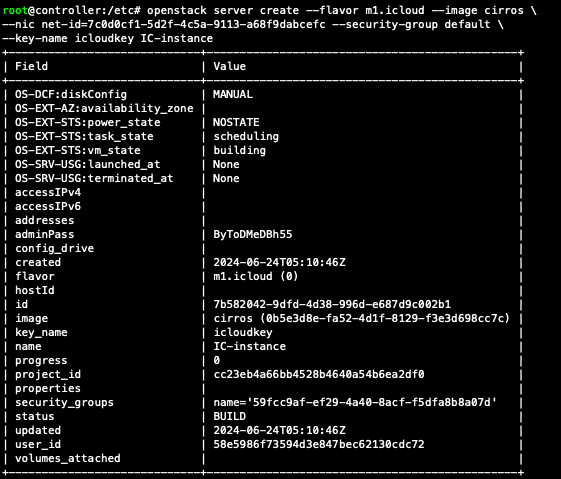

openstack server create --flavorm1.icloud --image cirros \
--nic net-id=7c0d0cf1-5d2f-4c5a-9113-a68f9dabcefc --security-group default \
--key-nameicloudkeyIC-instance



openstack server list

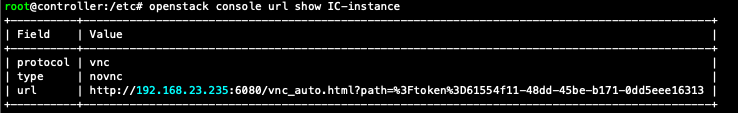

openstack console url show IC-instance

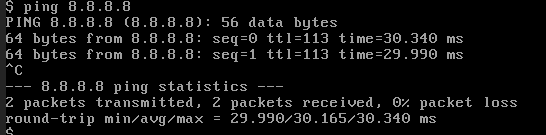

url 접속하면 웹 콘솔창이 뜸.





* user: cirros / password: gocubsgo

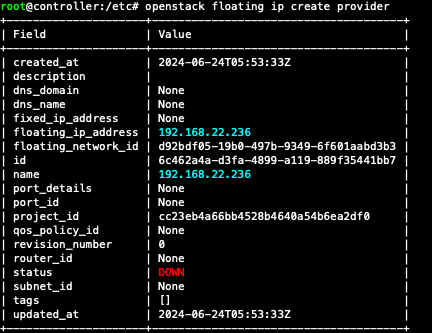

openstack floating ip create provider



openstack server add floating ip IC-instance 192.168.22.236

openstack server list
