오픈스택 멀티노드 설치 - Neutron

차. neutron 설치 및 설정

---

컨트롤러 노드에서 진행

1) 데이터베이스 설정

mysql

CREATE DATABASE neutron;

GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'NEUTRON_DBPASS';

GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'NEUTRON_DBPASS';

exit



2) neutron user 생성

openstack user create --domain default --password-prompt neutron

* 비밀번호: NEUTRON_PASS

openstack role add --project service --user neutron admin

* admin 권한 부여



3) neutron 서비스 엔트리 생성

openstack service create --name neutron --description "OpenStack Networking" network



4) neutron 서비스 엔드포인트 생성

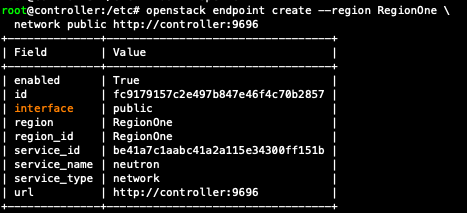

openstack endpoint create --region RegionOne \  network public http://controller:9696



openstack endpoint create --region RegionOne \  network internal http://controller:9696

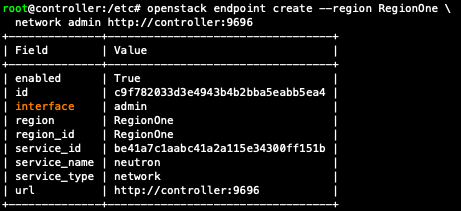

openstack endpoint create --region RegionOne \  network admin http://controller:9696



5) neutron 설치

apt install neutron-server

apt install neutron-plugin-ml2

apt install neutron-linuxbridge-agent

apt install neutron-l3-agent

apt install neutron-dhcp-agent

apt install neutron-metadata-agent



5) neutron 설정

vi /etc/neutron/neutron.conf

[database]
connection = mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron

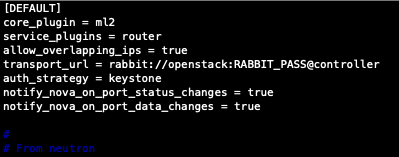

[DEFAULT]
# ...
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = true
transport_url = rabbit://openstack:RABBIT_PASS@controller
auth_strategy = keystone
notify_nova_on_port_status_changes = true
notify_nova_on_port_data_changes = true

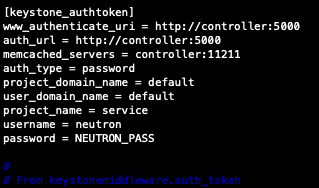

[keystone_authtoken]
# ...
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = NEUTRON_PASS



[nova]
# ...
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = NOVA_PASS



[oslo_concurrency]
# ...
lock_path = /var/lib/neutron/tmp



[experimental]
linuxbridge = true



* 파일 저장 후 나가기





vi /etc/neutron/plugins/ml2/ml2_conf.ini

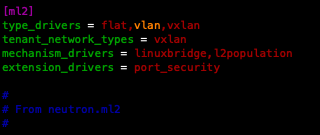

[ml2]
...
type_drivers = flat,vlan,vxlan
tenant_network_types = vxlan
mechanism_drivers = linuxbridge,l2population
extension_drivers = port_security



[ml2_type_flat]
...
flat_networks = provider



[ml2_type_vxlan]
vni_ranges = 1:1000



[securitygroup]
enable_ipset = true

* 저장 후 나가기





vi /etc/neutron/plugins/ml2/linuxbridge_agent.ini

[linux_bridge]
physical_interface_mappings = provider:프로바이더 네트워크로 쓰일 인터페이스(ex: 22대역대 ens192

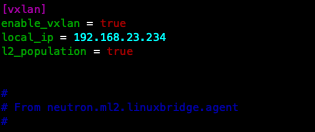

[vxlan] enable_vxlan = true local_ip =컨트롤러 노드의 IP l2_population = true

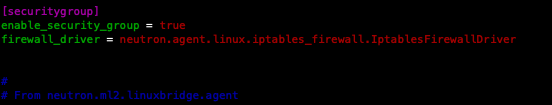

[securitygroup]
enable_security_group = true
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

* 저장 후 나가기





vi /etc/neutron/l3_agent.ini

[DEFAULT]
interface_driver = linuxbridge

* 저장 후 나가기





vi /etc/neutron/dhcp_agent.ini

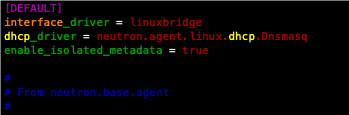

[DEFAULT]
interface_driver = linuxbridge
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = true

* 저장 후 나가기





vi /etc/neutron/metadata_agent.ini

[DEFAULT]
...
nova_metadata_host = controller
metadata_proxy_shared_secret = METADATA_SECRET

* 저장 후 나가기





vi /etc/nova/nova.conf

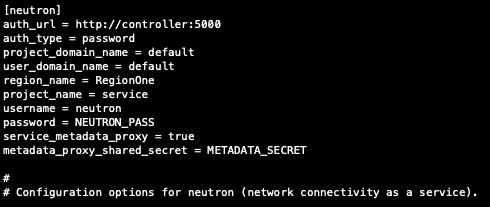

[neutron]
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS
service_metadata_proxy = true
metadata_proxy_shared_secret = METADATA_SECRET



[experimental]
linuxbridge = true

* [experimental] 추가

* 저장 후 나가기



su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \\  --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron

* DB 연동





systemctl restart nova-api

systemctl restart neutron-server

systemctl restart neutron-linuxbridge-agent

systemctl restart neutron-dhcp-agent

systemctl restart neutron-metadata-agent

systemctl restart neutron-l3-agent

* 재시작



service nova-api status

service neutron-server status

service neutron-linuxbridge-agent status

service neutron-dhcp-agent status

service neutron-metadata-agent status

service neutron-l3-agent status

* 검증



6) 컴퓨트 노드 neutron 설정

apt install neutron-linuxbridge-agent

vi /etc/neutron/neutron.conf

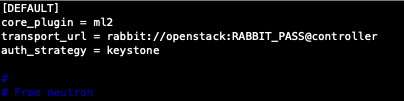

[DEFAULT]
# ...
transport_url = rabbit://openstack:RABBIT_PASS@controller
auth_strategy = keystone

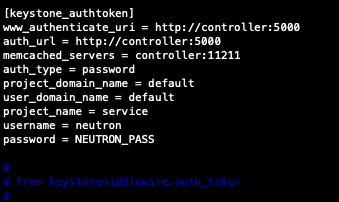

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = NEUTRON_PASS



[oslo_concurrency]
lock_path = /var/lib/neutron/tmp

* 저장 후 나가기







vi /etc/neutron/plugins/ml2/linuxbridge_agent.ini

[linux_bridge]
physical_interface_mappings = provider:프로바이더 네트워크로 쓰일 인터페이스(ex: 22대역대 ens192

[vxlan]
enable_vxlan = true
local_ip =컴퓨트 노드의 IP
l2_population = true



[securitygroup]
enable_security_group = true
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

* 저장 후 나가기





vi /etc/nova/nova.conf

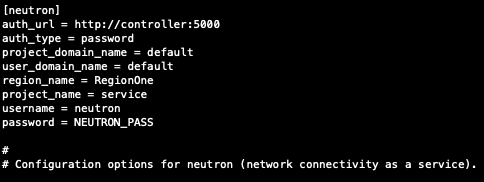

[neutron]
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS

* 저장 후 나가기





service nova-compute restart

service neutron-linuxbridge-agent restart
